Smelt Your Own Gold

We have several home use models to choose from, Find our Trademark Registered Kwik Kilns on Amazon.com and eBay.com



WE ARE THE MANUFACTURER AND TRADEMARK HOLDER OF THE ORIGINAL KWIK KILN SERIES OF KILNS SINCE 2014. BEWARE OF IMITATIONS NOT REPRESENTED AS A GENUINE KWIK KILN PRODUCT

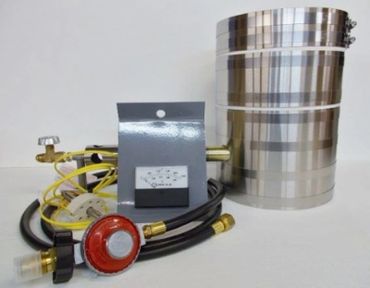

Kwik Kiln 12

 Specifications:


Model name: KK-12

Height: 12”

Width 12” Diameter

Chamber: 6.25” Diameter x 7” Tall

Weight: 19lbs

Modular design – provides easier access for loading or removal of crucible from the kiln.


Kit includes:


Kiln

Olympic Analog Pyrometer

Custom machined 160,000 BTU Bi-Metal Burner, stand & needle valve

60psi variable pressure regulator with gauge and 6’ hose.

A5 Clay Graphite Salamander Crucible

Liner Maintenance Kit

Extra Crucible Pedestal

Instruction Manual




Kwik Kiln 8



Specifications:


Model name: KK-8

Height: 11”

Width: 8” Diameter

Crucible Chamber5” Diameter x 5” Tall

Weight: 10 lb


Kit includes:


Kiln

Olympic Analog Pyrometer

Custom made 160,000 BTU Bi-Metal Burner with stand

6” hose with 60psi regulator, gauge and needle valve

A2 Clay Graphite Salamander Crucible

NAC 500 Graphite Double Conical Pouring Mold

Crucible Pedestal

18" Crucible Tongs

GPK Premium Black Gold Flux 2 pounds

GPK Refining and Melting Flux 2 pounds

Bone Ash ½ pound

Liner Restore

Instruction Manual



Kwik Kiln 6 Map Gas Compatible




Specifications:


Modular Design

Improved Refractory Material

Mapp Gas Compatible

Height: 7”

Width: 6” Diameter

Chamber: 3” Diameter x 4” Tall

Weight:3 lb 12 oz


Deluxe Kit Includes:


Kiln

(1) A0.5 graphite clay crucible

(2) NAC 500 Mini Graphite Crucibles

Crucible Pedestal

NAC 500 Graphite Single Conical Mold

NAC 500 Graphite 2 oz gold/1 oz silver mold

8” Tongs

GPK Melting Flux 1 pound

GPK Premium Gold Flux 1 pound

Liner Restore

Instructions Manual

Not Included in Kit:

Propane Fired: Requires (2) 6000 BTU Torches (Bernzomatic TS4000 or equivalent)

Note: Pencil tip torches are not sufficient for this size kiln.


Kwik Kiln 6 Cupeling Kiln



Specifications:

Height: 6”

Width: 6” Diameter

Chamber: 3.5” Diameter x 3.25” Tall

Weight: 2 lbs. 12 oz.

Stainless Steel exterior

Modular Design


Propane Fired: Requires 2  (Bernzomatic TS4000 torches or equivalent)


Kit Includes:

Kiln with Clay Cupel Pedestal

(4) #12 Mabor Cupels

8” bent Cupel Tongs

Liner Maintenance Kit

Fire Assay Book

Instructions Manual


Kwik Kiln II



Specifications:

Kiln weight: 1 lb

Size: 4” OD x 4” Tall

Propane Fired: Requires (2) pencil tip torches

Crucible Type/Size: Graphite, 1.5” OD x 1.75” Tall

Capacity: Up to 6 oz gold or up to 3 oz silver or copper




Features:

Reaches 2100°F in 10 to 15 minutes

Economical

Utilizes inexpensive propane pencil tip torches

Portable: Take it with you to the field and melt up to 6 ounces of placer gold


(Not recommended for smelting ore concentrates, due to the small kiln size and capacity of the crucible, along with the need for a higher flux ratio)

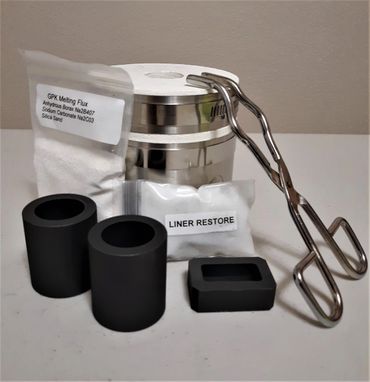

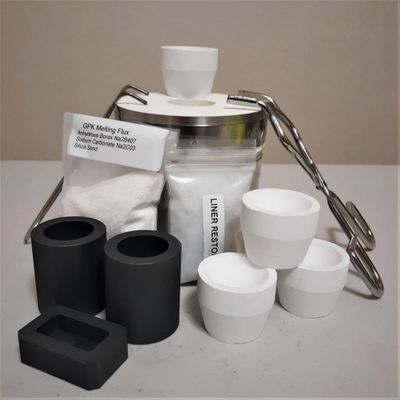

Kwik Kiln II Hybrid Kiln






                                             Specifications:


                                             Kiln weight: 1 lb.

                                          Size: 4” OD x 4” Tall

                       Propane Fired: Requires (2) pencil tip torches

  Cupel your lead prill after fire assaying or melt metals and pour ingots



                                               Kit Includes:

                                       Kwik Kiln II Hybrid Kiln

                             4 DFC premium bone ash cupels

                                          3 oz melting flux

                     2 NAC 500 mini graphite melting crucibles

                 1 NAC 500 2 oz gold (1 oz silver) graphite mold

                             6-inch tongs and cupel mini tongs

                                                Liner restore

                 Instruction manuals for cupeling and metals melting


Kwik Kiln II Cupeling Kiln



Specifications:

Kiln weight: 1 lb

Size: 4” OD x 4” Tall

Propane Fired: Requires (2) pencil tip torches

Cupel your lead prill after fire assaying

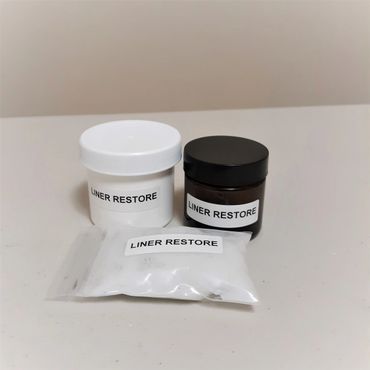

Liner Restore



The liner restore is a custom formulation designed to patch the superficial cracking that occurs when the kiln is fired and the alumina silicate liner stabilizes after shrinking. The alumina silicate liner shrinks approximately 5 to 8 percent after the initial firing and seasoning the of kiln. This phenomenon is the nature of the beast so to speak and is to be expected with this refractory material.


Once the liner has stabilized the liner restore can be used to patch any cracking encountered as well as patch any liner erosion due to dusting or small spills of borax flux onto the liner. The liner restore is a water-based formulation and can be thinned slightly by adding a small amount of water to the liner restore and thoroughly mixing if desired.


The recommended procedure for patching the superficial cracking is to wear nitrile gloves and press the liner restore material into the cracks filling them up. Once the cracking and or patching is completed allow the liner restore material to dry completely before firing the kiln again. Approximately 8 to 12 hours is required depending upon the amount of liner restore applied to the liner. Drying time can be shortened by using a hair dryer or placing the kiln in a warm environment such as in a sunny location. A small amount of liner restore goes a long way in this custom formulation.


DO NOT EXPOSE THE LINER RESTORE TO FREEZING TEMPERATURES!!!!
